Kovar / Nilo K (ASTM F15)
Technical Data Sheet
Kovar (Alloy K) is a nickel-iron-cobalt controlled-expansion alloy containing 29% nickel. Its coefficient of expansion, which decreases with rising temperature to the inflection point, matches the expansion rate of borosilicate glasses and alumina ceramics. Kovar (Alloy K) is used for glass-to-metal seals in applications requiring high reliability or resistance to thermal shock. Kovar (Alloy K) is used for high-power transmitting valves, transistor leads and headers, integrated-circuit lead frames, and photography flash bulbs.
Kovar Chemical Composition (Basic Density 8.36) | |||||||||||||
Weight % | Ni | Fe | Co | C | Mn | Si | Al | Cr | Mg | Zr | Ti | Cu | Mo |
Alloy K | 29.0 | 53.0 | 17.0 | 0.04 max | 0.50 max | 0.20 | 0.10 max | 0.20 max | 0.10 max | 0.10 max | 0.10 max | 0.20 max | 0.20 max |
Typical Mechanical Properties
Material | Condition | Yield Strength (0.1% Offset) | Tensile Strength | Elongation % | ||
psi | MPa | psi | MPa | |||
Alloy K | Annealed | 49,000 | 340 | 75,000 | 520 | 42 |
Availability

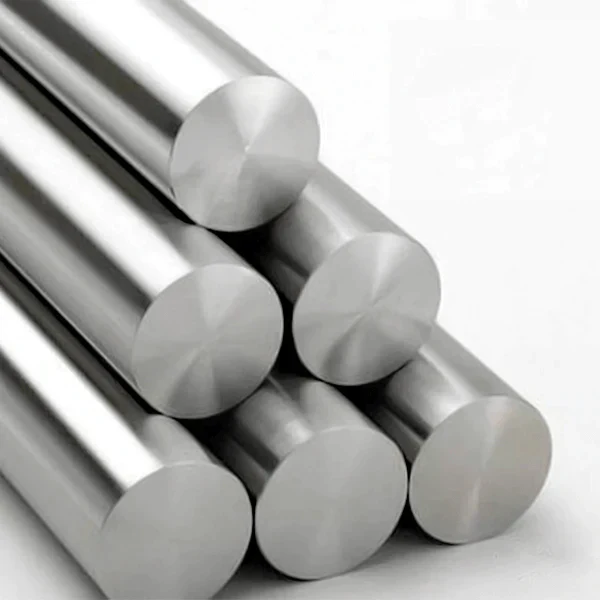

Alloy K / Kovar is available (further details) in Bar, Rod, Tube, Sheet, Strip, Coil, Plate and Wire. For all stock availability contact Sales for further availability.
Specifications | Registered Names |
We are experts in difficult to obtain sizes contact Sales for many other sizes and forms.
